Product name
1.3kw turbo compressor for Laser printing machine paper folding machine used GHBH 1D7 12 1R5
Products advantages
Oil free, no routine maintenance;
Single phase,single voltage;
Smart size and easy installation;
SKF & NSK bearing adapted
Aluminium alloy ADC-12 material
Insulation class: F
Protection class: IP54
Wide voltage range and frequency range50/60hz
High vacuum& pressure producer
20000 hours continuously operation lifetime;
Technical data
| Model No. |
GHBH 1D7 12 1R5 |
| Phase |
single |
| Stage |
single |
| Frequency |
50HZ |
60HZ |
| Output |
1.3kw |
1.5kw |
| Voltage |
200-240 |
| |
220-275 |
| Current |
7.3 |
7.5 |
| Max Airflow |
210m3/h |
255m3/h |
| Max Vacuum |
170mbar |
150mbar |
| Max Pressure |
170mbar |
140mbar |
| Gloss Weight |
22 |
| Speed of rotation |
2850/3450r/min |
| Sound |
6/70db |
| Level of protection |
IP54 |
| Insulation class |
F |
Other Business Terms
Unit price: can be discussed with sales
MOQ: 1 Set
Delivery time: 3-10days
Payment terms: by TT, 100% before delivery or 30% deposit, 70% balance against copy of BL.
Delivery terms: EX-WORK, CIF, FOB, DDP, DDU is available;
After-sales service
When the blower has been risen for a complaint, we need the customer provide following data sheet:
Firstly, we need the clear pictures of the blower, also the working site pictures, and the description details of the problem.
Secondly, we will feedback the information to our engineer to check and find a diagnosis to the problem.
If the problem is a small quality problem itself, then we will send repair instruction to you to fix, if any accessories broken, we will send the new accessories to you, also, we would consider sending a new blower to you depends on the situation.
If the problem was caused by customers' improper use of blowers, we will also offer you instruction how to repair it. And if need the accessories, we also supply the accessories to you with charges.
Warranty
Within 3 months, send a free brand-new blower while ocean freight/express courier is on customer's account.
Within 18months sending instruction via email and give a diagnosis to the problem. Then send free accessories while express rate is on customer’s account.
Applications
Goorui blower has been widely used in more than 100 different applications. It can be used for vacuum propose, such as printing machine, dental suction machine,vacuum cleaner, central vacuum system,air knife system, drying machine,PCB drying machine, CNC router, vacuum lifting,etc;
Or it can be used for pressure propose, such as water,waste water treatment, spa aeration, aquaculture, bio-gas conveying,oil treatment equipment,Gas analysis, Smoke extraction equipment,Milking equipment,Bottling equipment,Feeding machine,TEXTILE machine,etc;
Product Tags:
|
|

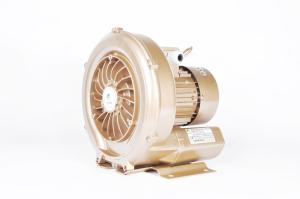

1.3kw Turbo High Pressure Ring Blower , Regenerative Vacuum Pump Single Phase Images
|
