Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW

Product Categories
Hongkong Fenglisheng Group Company Limited
Contact Now

Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW

  • 1
  • 2

Brand Name : GOORUI VACUUM PUMP

Model Number : GHBH 027 36 BR9

Certification : CE/TUV/ISO9001-2001/SGS/ROHS

Place of Origin : MADE IN CHINA

MOQ : 1

Price : $2584.00/set

Payment Terms : T/T, L/C, D/A, D/P,

Supply Ability : 1000 set/day

Delivery Time : 15 work days

Packaging Details : 1. Packed in individual cartons.

Model No : GHBH 027 36 BR9

Phase : 3

Frequency : 50/60HZ

Output : 20.0kw/23.0kw

Voltage : 345-415△600-690Y/380-480△660-720Y

Current : 40.0△/23.0Y/42.0△/24.2Y

Max Airflow : 2050m3/h/2480m3/h

Max Vacuum : 250mbar/190mbar

Max Pressure : 230mbar/180mbar

Gloss Weight : 230kgs

Speed of rotation : 2800/3600r/min

Sound : 75/84db

Level of protection : IP54

Insulation class : F

Contact Now

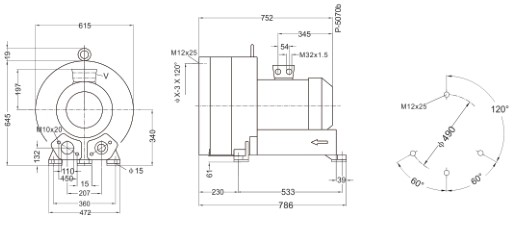

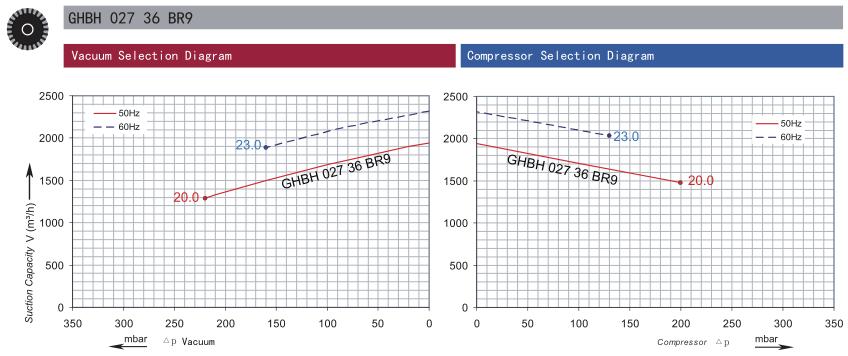

Blower/pump Parameter& drawing

Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW

Goorui Model Single Frequency Rated Voltage Rated Max Rated Rated Sound Weight
Double Output Current Airflow Vacuum Pressure
Stage Hz KW V A m3/h mbar mbar dB(A) Kg
Double 50 20 345-415△600-690Y 40.0△/23.0Y 1940 -220 200 75 212
60 23 380-480△660-720Y 42.0△/24.2Y 2310 -160 130 84

Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW

  • Energy-saving operation through higher efficiency

  • Variable output control Regenerative Blower

  • Virtually maintenance-free Regenerative Blower

  • ADC12 aluminum alloy, Processed on precision CNC machine

Blower/pump Characteristic

Oil free and low noise
More than 20000hours operation lifetime

No routine maintenance with stable performance
Easy installation and no vibration
Insulation class: F/H

Protection class: IP54/IP55

Site photographs

Electric 3 Phase Vacuum Pump For Pneumatic conveying Double Stage 20.0KW

Warranty

Within 3 months, send a free brand-new blower while ocean freight/express courier is on customer's account.

Within 18months sending instruction via email and give a diagnosis to the problem. Then send free accessories while express rate is on customer’s account.
