Products Description
Auto high pressure ring blower vacuum holding air blower with IE3 motor
Improt HS CODE: 8414100090
Products features
- Oil free and low noise
- 20000hours operation lifetime
- No routine maintenance with stable performance
- Easy installation and no vibration
- SKF , NSK , ORS high quality bearing adapted
- Insulation class H
- Protection class IP55
- Wide voltage range and frequency range 30-60hz
- Either used for suction ( vacuum ) or discharge ( pressure )
Technical details
| Model No. | GHBH 7D5 36 AR8-IE3 |
| Phase | 3 |
| Stage | single |
| Frequency | 50HZ | 60HZ |
| Output | 5.5kw | 6.3kw |
| Voltage | 345-415△600-720Y |
| | 380-480△660-720Y |
| Current | 12.9△/7.4Y | 12.9△/7.45Y |
| Max Airflow | 700m3/h | 840m3/h |
| Max Vacuum | 200mbar | 180mbar |
| Max Pressure | 180mbar | 180mbar |
| Gloss Weight | 75kgs |
| Speed of rotation | 2850/3450r/min |
| Sound | 70/74db |
| Level of protection | IP55 |
| Insulation class | H |
Business Terms
- Unit price:USD680-USD857/SET
- Delivery time: 3-10days
- Payment terms: by TT, 100% before delivery or 30% deposit, 70% balance against copy of BL.
- Delivery terms: EX-WORK, CIF, FOB, DDP, DDU is available;
After-sales service
When the blower has been risen for a problem, we need the customer provide following data sheet:
Firstly, we need the clear pictures of the blower, also the working site pictures, and the description details of the problem.
Secondly, we will feedback the information to our engineer to check and find a diagnosis to the problem.
If the problem is a small quality problem itself, then we will send repair instruction to you to fix, if any accessories broken, we will send the new accessories to you, also, we would consider sending a new blower to you depends on the situation.
If the problem was caused by customers' improper use of blowers, we will also offer you instruction how to repair it. And if need the accessories, we also supply the accessories to you with charges.
Warranty terms
Within 3 months, send a free brand-new blower while ocean freight/express courier is on customer's account.
Within 24months sending instruction via email and give a diagnosis to the problem. Then send free accessories while express rate is on customer’s account.
Applications
Goorui blower has been widely used in more than 100 different applications.
It can be used for vacuum propose, such as printing machine, dental suction machine,vacuum cleaner, central vacuum system,air knife system, drying machine,PCB drying machine, CNC router, vacuum lifting,etc;
Or it can be used for pressure propose, such as water,waste water treatment, spa aeration, aquaculture, bio-gas conveying,oil treatment equipment,Gas analysis, Smoke extraction equipment,Milking equipment,Bottling equipment,Feeding machine,TEXTILE machine,etc;
Product Tags:
|
|

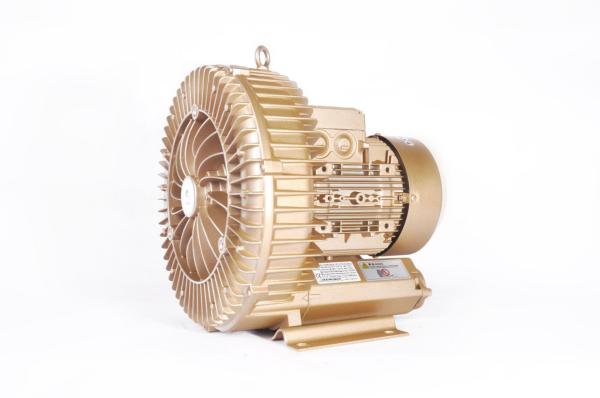

Auto High Pressure Ring Blower / Vacuum Holding Air Blower With IE3 Motor Images
|
